產(chǎn)品展示
PRODUCT

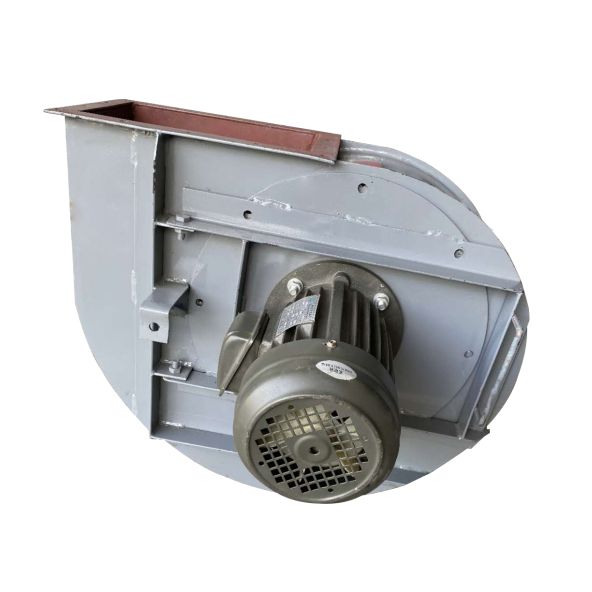

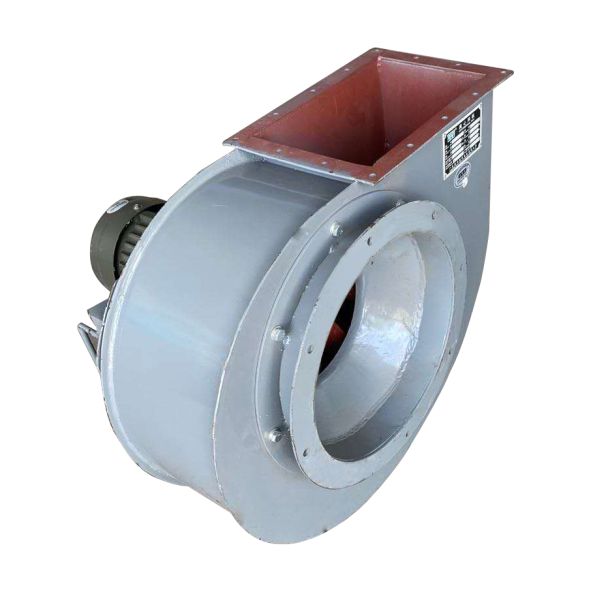

在TFFA基礎上針對凈化涂裝市場開發(fā)的立式專用機型
風機結構先進，可以不用打開管道的情況下將葉輪翻轉進行維修清理
風機流量大，靜壓高
廣泛用于凈化涂裝框，或其他設備配套使用
機號范圍：355-710mm共7個機號
Vertical type fan developed specially to point at the painting industry
on the base of TDFA
Advanced structure ,easy to maintain and clean by turning
over the impeller and no need to open the duct
Large air volume and high static pressure
Widely used in painting cabinet purifying ,or used in matching
equipment
Models no.:2.8A-6A ,total 7 models
產(chǎn)品詳情
|
型號
Model |
電壓
Voltage |
功率
Power |
轉速
Revolution |
風量
Air Volume |
風壓 Wind pressure （Pa） |
規(guī)格
Specifications |
總重量
Total weight |
葉輪重量 Wind wheel Weight (Kg) |
入風口尺寸Air inlet size |
出風口尺寸 Air outlet size |
整機單價 Unit price of complete machine （RMB） |
風輪價 Wind turbine price （RMB） |
|
2.8A |
380 |
1.5 |
2900 |
1300-2810 |
1000-600 |
570x560x480 |
|
|
Φ280 |
224x196 |
1900 |
500 |
|
3.2A |
380 |
2.2 |
2900 |
2688-3517 |
1300-792 |
875x550x685 |
|
|
Φ320 |
260x224 |
2200 |
600 |
|
3.6A |
380 |
3 |
2900 |
2664-5268 |
1578-989 |
940x605x765 |
|
|
Φ360 |
288x252 |
2800 |
700 |
|
4A |
380 |
5.5 |
2900 |
4012-7419 |
3014-1320 |
1050x705x765 |
|
|
Φ400 |
320x280 |
4400 |
800 |
|
4.5A |
380 |
7.5 |
2900 |
5712-10562 |
2554-1673 |
1050x705x955 |
|
|
Φ450 |
360x315 |
5000 |
900 |
|
5A |
380 |
15 |
2900 |
7728-15455 |
3187-2019 |
1347x858x1057 |
|
|
Φ500 |
400x350 |
7200 |
1000 |
|
6A |
380 |
4 |
1400 |
6677-13353 |
1139-724 |
1356x770x1256 |
|
|
Φ600 |
480x420 |
5700 |
1200 |
|
5.5 |
1400 |
7207-15322 |
1210-810 |
1356x770x1256 |
|
|
6300 |
