產品展示
PRODUCT
90°、180°、0°三種安裝角度可調。
用于設備配套、賓館飯店通風換氣及抽油煙。
型號：CF150-CF350共5種規格

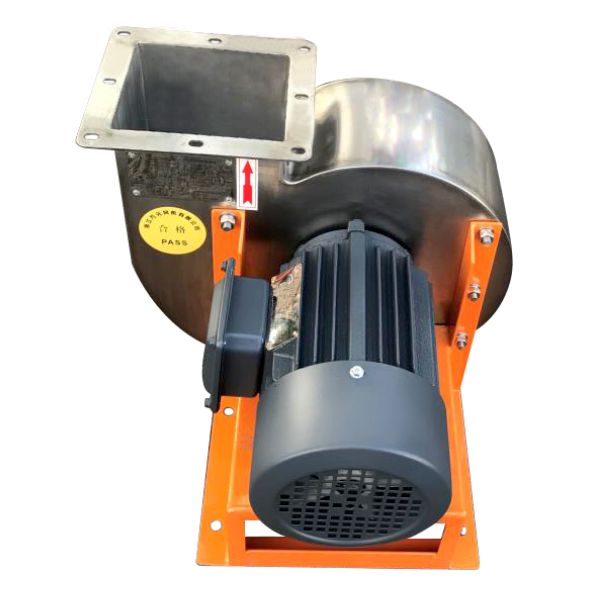

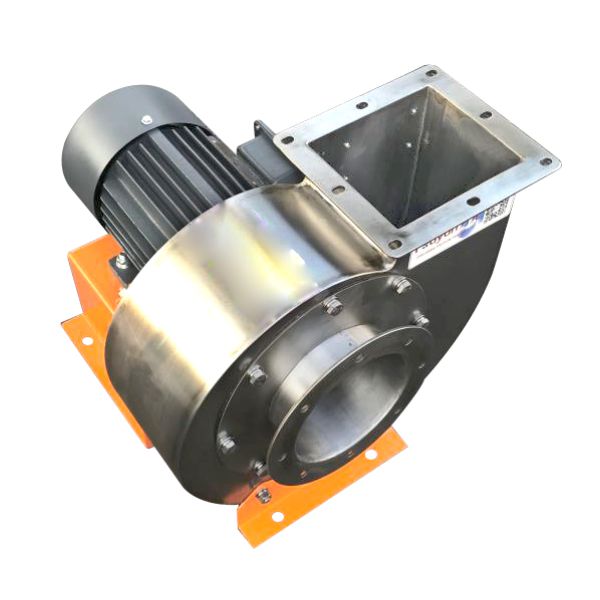

Stainless steel forward multi wing single inlet centrifugal fan.
The installation angles of 90 °, 180 ° and 0 ° are adjustable.
It is used for equipment supporting, ventilation and lampblack in hotels and restaurants.
Model: cf150-cf350, 5 specifications in total
產品詳情
|
型號
Model |
電壓
Voltage |
功率
Power |
轉速
Revolution |
流量
flow |
全壓 Total pressure （Pa） |
304葉殼價 304 shell price（RMB） |
304整機價 304 overall price （RMB） |
規格
Specifications |
|
1.5A |
380 |
0.37-2 |
2825 |
800-1080 |
900-700 |
1300 |
2100 |
|
|
2A |
380 |
1.1-2 |
2825 |
1800-2100 |
840-760 |
1400 |
2200 |
|
|
2.5A |
380 |
2.2-2 |
2825 |
3000-3800 |
1470-1275 |
1600 |
2600 |
|
|
3A |
380 |
1.5-4 |
1450 |
4000-4500 |
750-600 |
1800 |
2730 |
|
|
3.5A |
380 |
3-4 |
1450 |
5100-7000 |
1200-1000 |
2300 |
3720 |
|
|
4A |
380 |
4-4 |
1450 |
7500-8500 |
1400-1200 |
3360 |
5120 |
|
|
4.5A |
380 |
7.5-4 |
1450 |
9000-12000 |
1500-1300 |
3800 |
6600 |
|
